Metal Gates

Metal gates

When it comes to metalwork, enhance any area with classic metal gates. At Surrey Wrought Iron, we offer a diverse range of designs to choose from or for those with a flair for creativity, our skilled craftsmen can bring your unique vision to life through beautiful bespoke ironwork.

View our metal gate galleries below.

The Galvanising and Powder Coating Process

All Projects are installed to meet expectation on longevity and durability. To achieve this, we recommend galvanising and powder-coating. Each steel gate undergoes a particular series of processes, which may include shot blasting, a cleansing bath, hot dipped galvanizing, and powder coating in a colour of your choice. This multi-step treatment not only enhances the aesthetics of the metalwork but also creates a protective layer, effectively preventing rust which ensures your ironwork stands the test of time.

Automated gates

Manual driveway gates

Pedestrian gates

Gate opening designs

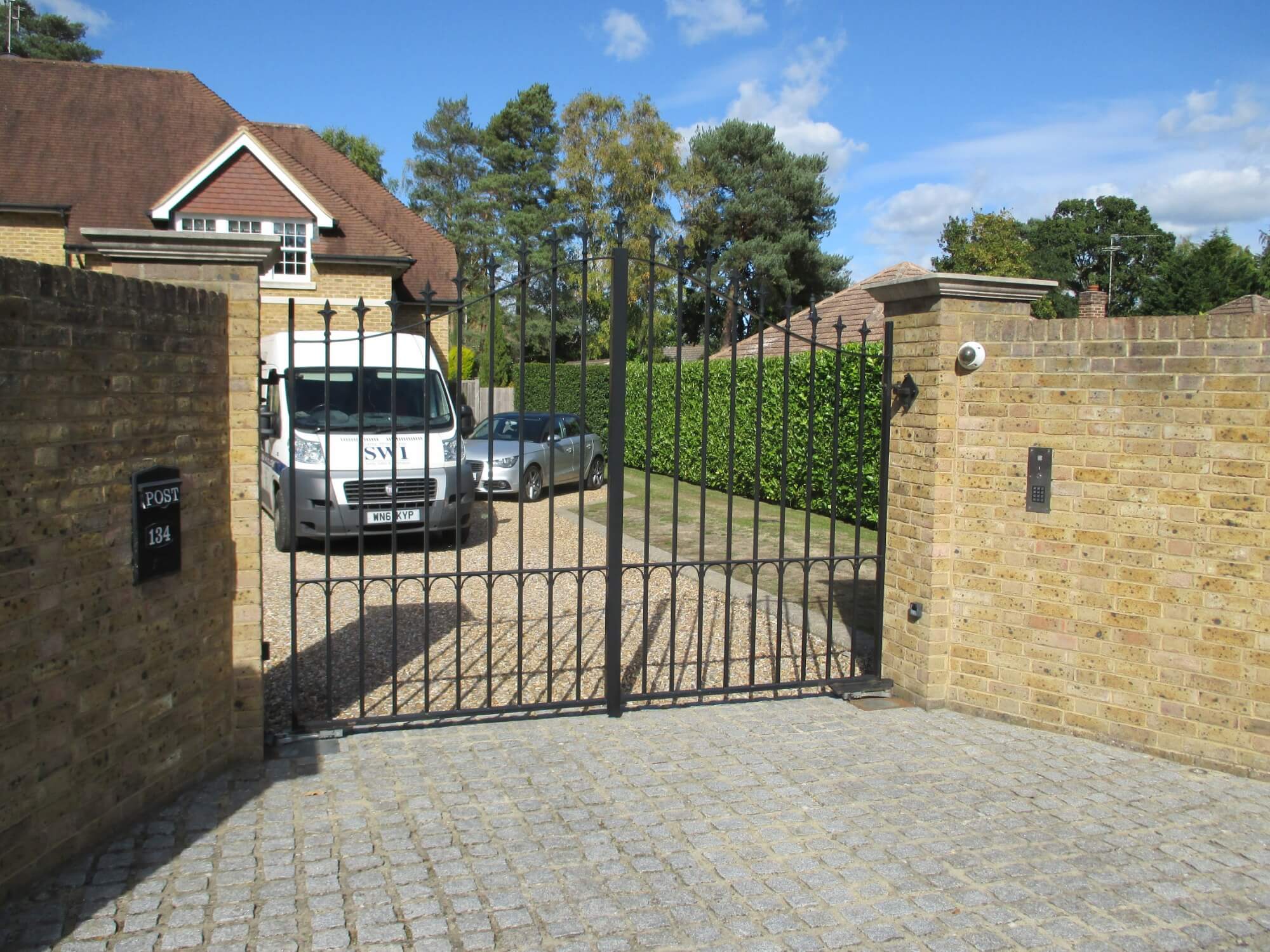

Swing gates

Our best Seller! Why? Not only do they look great, but they are also a cost-effective install and operate perfectly either manually or automatically. Traditionally swing gates are installed for the gate leaves to open into the property however due to their versatility, they can also swing outward, provided it is safe to do so.

If we are unable to achieve an outward swing installation for a driveway on a rising incline, we do have an alternative solution – explore our sliding gates.

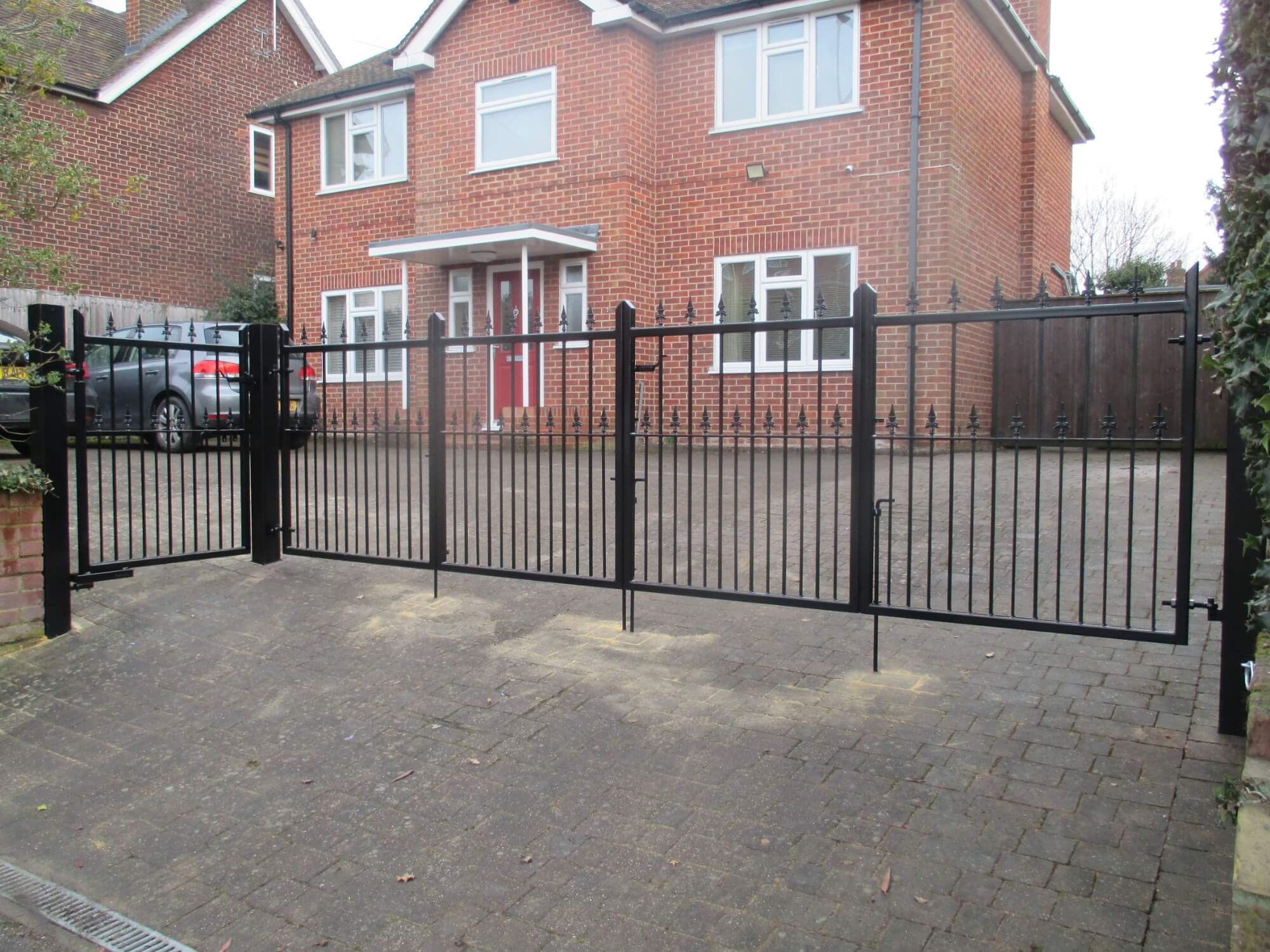

Folding gates

Folding gates are manufactured as separate leaves which are held by equally placed drop bolts. They are operated manually and are a fantastic remedy for entrance ways on a gradient or where parking space is limited. Their independent leaves allow the flexibility of opening fully for vehicle access, alongside simply opening just one leaf for pedestrians, you could even open just two leaves, the possibilities are unmatched.

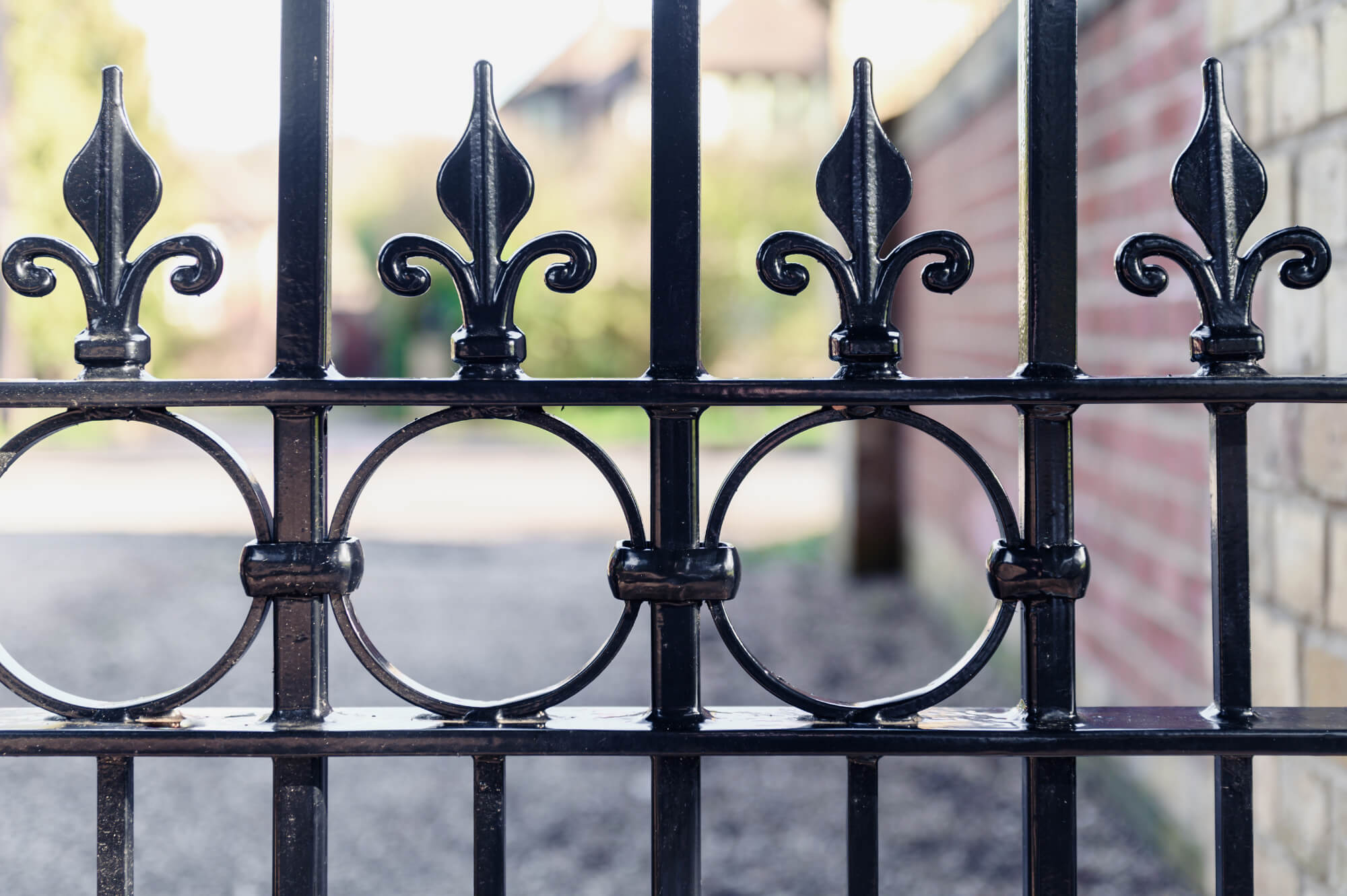

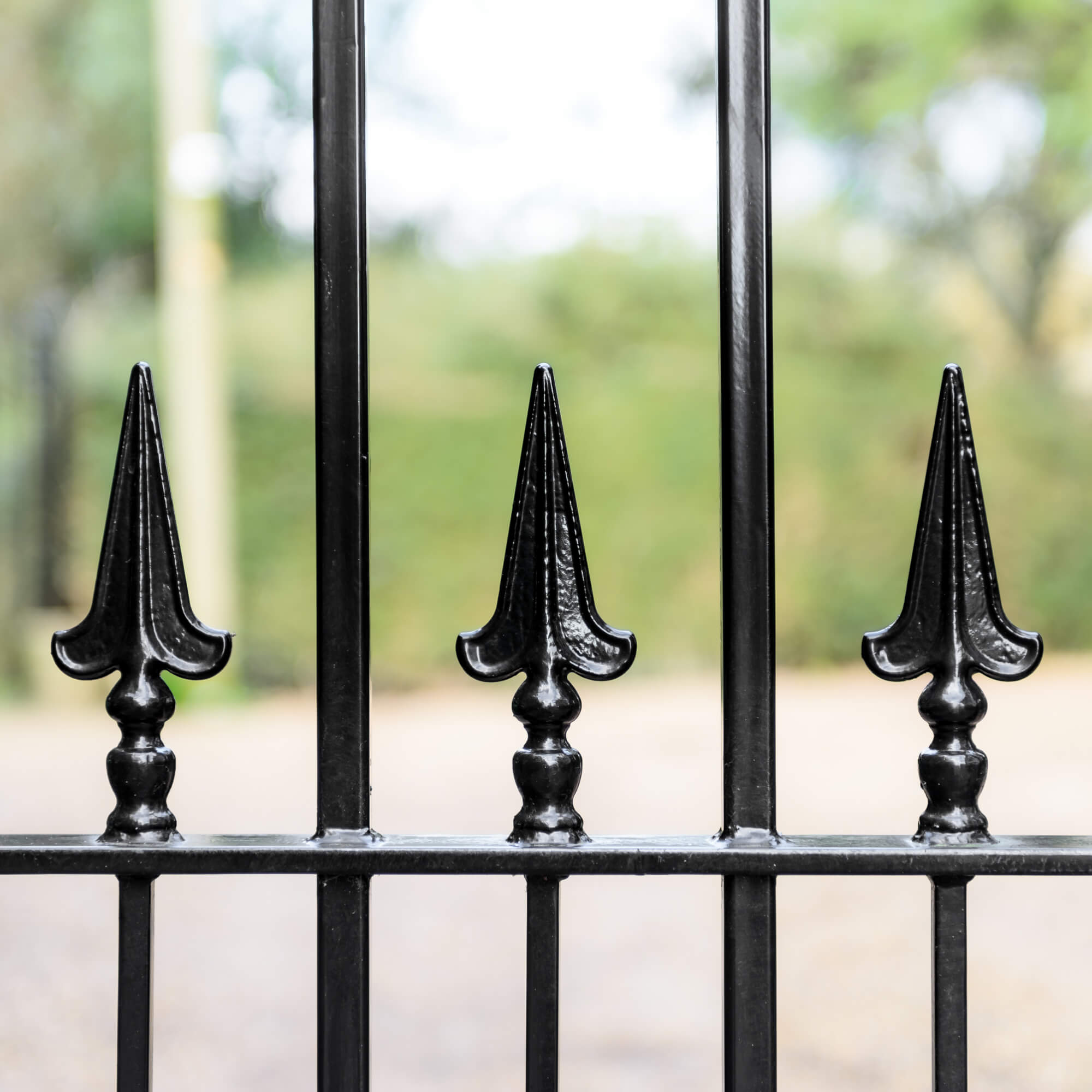

Finials/rail heads - what are finials/railheads?

Originally finials/rail heads were architectural, carved stone figures which were designed to draw attention to the tops of buildings, churches, walls etc. More commonly today, they are constructed from metal and used for bed posts, flag poles and decorative purposes on furniture.

We apply them to gates, railings and balustrading providing a more classic, yet detailed look. I’m sure you can agree, there is certainly something very charming about traditional gates with spear shaped finials on top.

Whatever your style, we’re sure to have a finial that you can proudly showcase on the top of your gate, railing, or balustrading.

Our full offerings can be viewed here

Gate specifications

The beauty of creating bespoke metalwork, is that we can construct to any size and adjust any design to suit your style.

For example, you prefer the top scrolls on one design, but your chosen design has circles, we can modify it to craft your vision.

Please see below for our weight specifications.

Standard weight

ideal for manual gates

  • Frame 25mm x 10mm OR 25mm x 25mm (Box)
  • Horizontals 25mm x 10mm (Flat)
  • Main Infill 12mm x 12mm Round/Square (Solid)
  • Dog bars 10mm x 10mm Round/Square (Solid)
Heavy weight

For a chunkier look, upgrade from standard weight to heavy weight

  • Frame 40mm x 10mm OR 40mm x 40mm (Box)
  • Horizontals 40mm x 10mm (Flat)
  • Main Infill 16mm x 16mm Round/ Square (solid)
  • Dog bars 12mm x 12mm Round/Square (Solid)
Premier weight

best for large estate, automated gates

  • Frame 50mm x 25mm OR 50mm x 50mm (Box)
  • Horizontals 50mm x 10mm (Flat)
  • Main Infill 20mm x 20mm Round/ Square (Box)
  • Dog bars 16mm x 16mm Round /Square (Solid)
